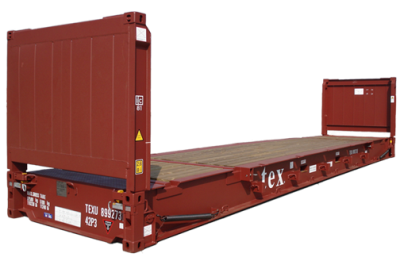

Textainer Flat Racks
Textainer’s flat racks incorporate the most recent designs and manufacturing technology to provide a unit that is easy to load and operate. With the highest payload in the industry, Textainer’s flat racks are the ideal equipment to carry and ship out-of-gauge and heavy duty cargo.
Features & Benefits
Features |
Benefits |
|---|---|
|
52,500 kgs MGW capacity (40ft) |
Provides additional payload |
|
All flats are equipped with flush folding full width front walls and folding front frames. |
Can be easily folded to allow flat racks to be used as a platform or to be easily stacked for ease of storage and transportation |
|
Full width deck |
Allows greater cargo capacity |
|
Hinge mechanisms and design are “Domino” or “Seadek” |
Worldwide standardization and availability of spare parts |
|
End frame locking and hinge pins have easily accessible lubrication points |
Reduce maintenance costs |
|
All flats are equipped with lashing points and stanchion pockets throughout the length of the main rails and end frames |
Allow for full lashing of cargo at multiple points |
|
In‐floor and chocking lashing set in the base assembly |
Recessed cross floor lashing zones and chocking slots provide increased cargo securement |
|
45 mm super duty solid wood planks treated with ultrawood and augmented by a steel deck plate at each end. |
Minimize floor damages by forklifts and rotting of floors |
|
Recess areas are provided in the end sills next to each corner casting |
Prevent damage from twist lock pin heads due to misalignment when loading |
Specifications
Download PDF
|
|
(20ft – 34 Ton) |
(40ft – 45 Ton) |
(40ft – 50 Ton) |
(40ft – 52.5 Ton) |
|---|---|---|---|---|
External Dimensions |
||||
| Length | 6,058 mm (19’‐10 1/2”) | 12,192 mm (40’‐0”) | 12,192 mm (40’‐0”) | 12,192 mm (40’‐0”) |
| Width | 2,438 mm (8’‐0”) | 2,438 mm (8’‐0”) | 2,438 mm (8’‐0”) | 2,438 mm (8’‐0”) |
| Height | 2,591 mm (8’‐6”) | 2,591 mm (8’‐6”) | 2,591 mm (8’‐6”) | 2,591 mm (8’‐6”) |
| (Folded) Height | 370 mm (14 1/2”) | 641 mm (25 1/4”) | 641 mm (25 1/4”) | 648 mm (25 1/2”) |
Internal Dimensions |
||||
| Length (side access) | 5,613 mm (18’‐4 15/16”) | 11,762 mm (38’‐7 1/16”) | 11,648 mm (38’‐2 2/16”) | 11,652 mm (38’‐2 7/16”) |
| Width (deck) | 2,218 mm (7’‐3 3/8”) | 2,378 mm (7’‐9 5/8”) | 2,378 mm (7’‐9 5/8”) | 2,374 mm (7’‐9 3/8”) |
| Height | 2,213 mm (7’‐3 1/8”) | 1,960 mm (6’‐5 3/16”) | 1,960 mm (6’‐5 3/16”) | 1,960 mm (6’‐5 3/16”) |
Ratings |
||||
| Maximum Gross Weight | 34,000 kgs (74,950 lbs) | 45,000 kgs (99,207 lbs) | 50,000 kgs (110,230 lbs) | 52,500 kgs (115,742 lbs) |
| Tare Weight | 2,740 kgs (6,040 lbs) | 4,795 kgs (10,570 lbs) | 5,000 kgs (11,023 lbs) | 5,050 kgs (11,133 lbs) |
| Payload | 31,260 kgs (68,860 lbs) | 40,205 kgs (88,627 lbs) | 45,000 kgs (99,207 lbs) | 47,450 kgs (104,609 lbs) |
| Concentrated load over center 2 meter | 20,000 kgs (44,090 lbs) | 25,400 kgs (55,997 lbs) | 30,000 kgs (66,138 lbs) | 30,000 kgs (66,138 lbs) |
Test Loads |
||||
| Stacking | 86,400 kgs (190,447 lbs) | 86,400 kgs (190,447 lbs) | 86,400 kgs (190,447 lbs) | 97,200 kgs (214,286 lbs) |
| Transverse Racking | 15,240 kgs (33,600 lbs) | 15,240 kgs (33,600 lbs) | 15,240 kgs (33,600 lbs) | 15,240 kgs (33,600 lbs) |
| Longitudinal Racking | 7,620 kgs (16,800 lbs) | 7,620 kgs (16,800 lbs) | 7,620 kgs (16,800 lbs) | 7,620 kgs 16,800 lbs) |
| Floor Strength | 7,260 kgs (16,000 lbs) | 7,260 kgs (16,000 lbs) | 7,260 kgs (16,000 lbs) | 7,260 kgs (16,000 lbs) |
| Lashing Points | 5,000 kgs (11,025 lbs) | 5,000 kgs (11,025 lbs) | 5,000 kgs (11,025 lbs) | 5,000 kgs (11,025 lbs) |
| Design Type | Domino or Seadek | Domino or Seadek | Domino or Seadek | Domino or Seadek |
Handling |
||||
| 2L | Seven (7) empty units can be stacked into a 20’X8’‐6” module. | |||
| 4L | Four (4) empty units can be stacked into a 40’X8’‐6” module for all 40ft flats. | |||
Download PDF

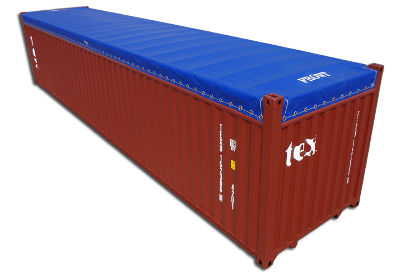

Textainer Open Tops
Textainer’s open tops provide the flexibility and functionality to carry over height or irregular cargo with the efficiency and economics of containerization. Constructed with swinging and removable rear headers, these units are designed for cargo loading through both the top of the container and the doors.
Some other key features are:
Features & Benefits
Features |
Benefits |
|
All corten construction and high grade paint system |
Higher performance and lower maintenance |
|
High strength top rails |
Provide additional damage resistance and large top opening |
|
All panels are 2.0t thick |
Stronger and more impact resistant |
|
Swinging/removal rear header |
Allow full and unrestricted cargo access through the rear of the container |
|
Standardized heavy duty tarpaulin |
Full protection of cargo and lower maintenance costs |
|
Stainless steel door holdback |
Stronger than nylon door holdbacks. Minimize need for replacement of lost or damaged door holdbacks |
|
Double “C” section bottom rails |
Stronger than conventional “C” section bottom rails and eliminates maintenance of side floor rails |
|
Standard size 19 ply hardwood floor boards with unexposed floor center rail |
Unexposed floor center rail minimizes corrosion |
|
Crossmembers with extended top flange, extended rear sill top flange, open section tunnel bolster, unexposed floor center rail |
Designed to minimize damages to floor and associated components and facilitate repairs |
Specifications
Download PDF
Ratings |
(20ft) |
(40ft) |
||
|---|---|---|---|---|
| Maximum Gross Weight | 30,480 kgs (67,200 lbs) | 30,480 kgs (67,200 lbs) | ||
| Tare Weight | 2,350 kgs (4,982 lbs) | 3,950 kgs (8,774 lbs) | ||
| Payload | 28,130 kgs (62,218 lbs) | 26,530 kgs (58,426 lbs) | ||
External Dimensions |
||||
| Length | 6,058 mm (19’‐10 1/2”+0/‐1/4”) | 12,192 mm (40’‐0”+0/‐1/4”) | ||
| Width | 2,438 mm (8’‐0”+0/‐3/16”) | 2,438 mm (8’‐0”+0/‐3/16”) | ||
| Height | 2,591 mm (8’‐6”+0/‐3/16”) | 2,591 mm (8’‐6”+0/‐3/16”) | ||
Internal Dimensions |
||||
| Length | 5,899 mm (19’‐4 ‐ 1/4”) | 12,024 mm (39’‐5 3/8”) | ||
| Top Aperture Length | 5,787 mm (18’‐11 ‐ 13/16”) | 11,809 mm (38’‐8 15/16”) | ||
| Width | 2,352 mm (7’‐8 ‐ 19/32”) | 2,350 mm (7’‐8 9/16”) | ||
| Top Aperture Width | 2,250 mm (7’‐4 ‐ 5/8”) | 2,230 mm (7’‐3 7/8”) | ||
| Height | 2,351 mm (7’‐8 ‐ 1/2”) | 2,351 mm (7’‐8 1/2”) | ||
Door Opening |
||||
| Width | 2,340 mm (7’8‐1/8”) | 2,338 mm (7’‐8”) | ||
| Height | 2,295 mm (7’5‐7/8”) | 2,279 mm (7’‐5 3/4”) | ||
Cube |
||||
| Cubic Capacity | 32.2m3 (1,137 ft3) | 67.0 m3 (2,366 ft3) | ||
Test Loads |
||||
| Stacking | 97,200 kgs (214,290 lbs) | 97,200 kgs (214,290 lbs) | ||
| Transverse Racking | 15,240 kgs (33,600 lbs) | 15,240 kgs (33,600 lbs) | ||
| Longitudinal Racking | 7,620 kgs (16,800 lbs) | 7,620 kgs (16,800 lbs) | ||
| Floor Strength | 7,260 kgs (16,000 lbs) | 7,260 kgs (16,000 lbs) | ||
